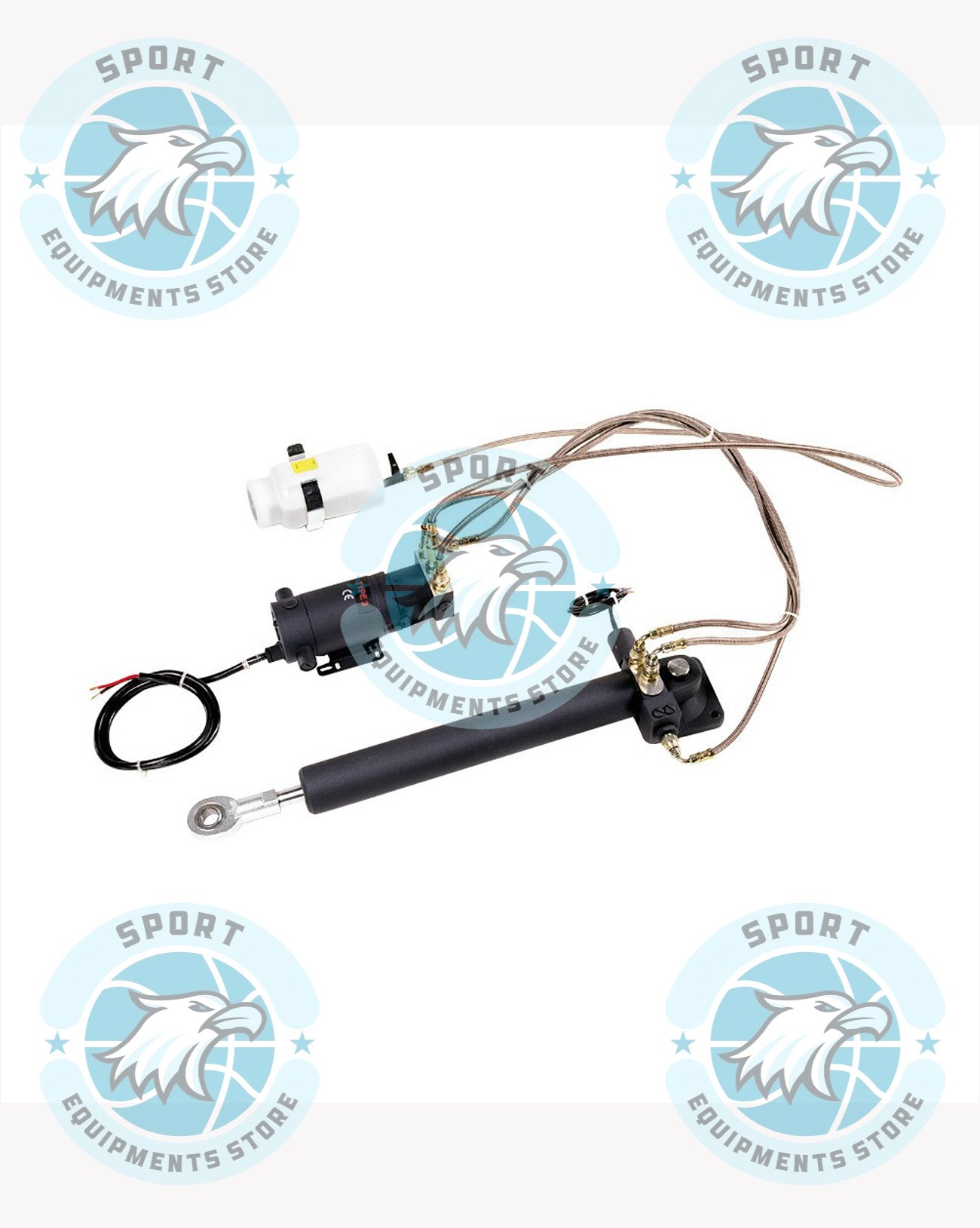

Type 3 Hydraulic Linear system for mechanically steered vessels up to 77,000lb (35,000kg) displacement.
The hydraulic linear drive system is designed for boats with existing mechanical steering systems, not hydraulic steering systems. It provides a totally isolated autopilot steering system consisting of:
Features : Raymarine Type 3 Hydraulic Linear – 12v
- Hydraulic ram: a self-contained autopilot steering cylinder with a load limiting system and a built in clutch (to allow friction-free steering when the autopilot is not in use)
- Reversing hydraulic pump: powers the hydraulic ram
- Hydraulic fluid reservoir: supplies hydraulic fluid to the system
The hydraulic linear drive system is designed for boats with existing mechanical steering systems, not hydraulic steering systems. It provides a totally isolated autopilot steering system consisting of:
Features:
- Hydraulic ram: a self-contained autopilot steering cylinder with a load limiting system and a built in clutch (to allow friction-free steering when the autopilot is not in use)
- Reversing hydraulic pump: powers the hydraulic ram
- Hydraulic fluid reservoir: supplies hydraulic fluid to the system
Specifications :
- Type: Pumps/Drives
- Box Dimensions: 12″H x 13″W x 32″L WT: 27.9 lbs
- UPC: 023193812021
The Raymarine Type 3 Hydraulic Linear Drive (12V, Part No: M81202) is a powerful, self-contained hydraulic autopilot system specifically designed for driving the steering mechanism on large vessels.
The following are the device’s key specifications:
Maximum Vessel Capacity: Recommended for vessels with a displacement of up to 35,000 kg (77,000 lbs).
Maximum Thrust: Up to 1,200 kg (2,645 lbs).
Stroke Length: 300 mm (12 inches).
Voltage: 12 Volts.
System Compatibility: Designed for use with the Raymarine ACU-400 autopilot steering control module.
This system combines the reversing pump, oil reservoir, and hydraulic cylinder into one compact, robust unit, resulting in smooth and highly responsive rudder movement.
